Niobium Target

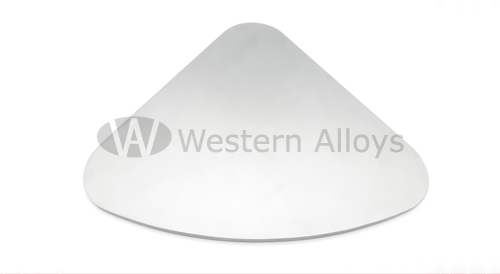

niobium target

Application of Niobium Target

Niobium Target material is widely applied in chemical industry, medical treatment, glasses, electric power, electroplating, electronics, aerospace, military industry, petroleum and other industries.
Niobium Sputtering Target, as an important raw material for preparing Niobium and its alloy thin film materials, has been widely used on LCD flat panel display, optical lens, electronic imaging, information storage, solar cell, glass coating and other products in photoelectric field, as well as been applied in shipping, chemical and other corrosive environments.

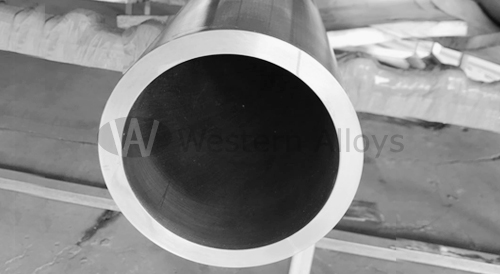

niobium sputtering target

At present, Rotating Coated Niobium Target is mainly used in advanced touch screen, flat display and surface coating of energy-saving glass, which has anti-reflection effect on glass screen.
Seamless Niobium Tube Target has the advantage of high efficiency and uniform film compared to plane target. Nb2O5 produced by Niobium Tube Target during magnetron sputtering is an electrochromic material with good performance and high refractive
index. Films with different refractive index can be prepared by mixture with SiO2.

Therefore, Nb2O5 film has been widely used, and the demand for Niobium Target is increasing. Because of its high price and easy to oxidation characteristic, it is very necessary to develop the production method of lower cost, large-size, environment-friendly and pollution-free for Niobium Tube Target

Properties of Niobium Target

Type Main composition of Niobium Target Other impurities Max%
Nb Fe Si Ni W Mo Ti Ta O C H N
R04210 Remainer 0.004 0.004 0.002 0.005 0.005 0.002 0.07 0.015 0.004 0.0015 0.003
Niobium Tube Target's physical properties
Grade Tensile strength,Min Yield strength (0.2% residual deformation) Elongation (25.4mm standard distance)
18000psi (125MPa) 12000psi (85MPa) 25%

Our Niobium Target products

Main products are Niobium Rotating Target, Niobium Sputtering Target, Niobium Planar Target, Niobium Tube Target and so on.
If you have any drawing, we can also follow your design and custom made for you.
