Ti-Grade 5

ti-6al-4v sheet

Overview of Titanium Grade 5 alloy

The main characteristics of Ti-6Al-4V (Ti Grade 5) alloy are its excellent comprehensive and good processing performance.

Ti Gr5 Titanium alloy also has the excellent process properties of plasticity and super plasticity. Therefore, they are suitable for forming by various pressure machining methods, and compatible for welding and machining in various ways.

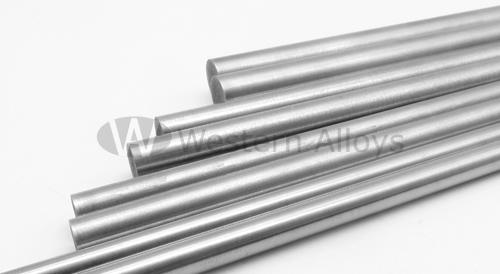

titanium grade 5 rod

Western Alloys provides Ti Gr.5 Sheet, Ti Grade 5 Rod, Titanium grade 5 Foil, Ti-6Al-4V Wire, Ti Grade 5 Parts, Ti Gr.5 Gr.23 Bar and other products.

Properties of Ti Grade 5 alloy

Ti Grade 5 Titanium alloy thermal conductivity
θ/℃ 20 100 200 300 400 500
λ/W·m-1·K-1 6.8 7.4 8.7 9.8 10.3 11.8
Ti-6Al-4V Titanium alloy specific heat capacity
θ/℃ 20 100 200 300 400 500
c/J·kg-1·K-1 611 624 653 674 691 703
Ti-6Al-4V Titanium alloy linear expansion coefficient
θ/℃ 20~100 20~200 20~300 20~400 20~500 20~600
α/10-6K-1 9.1 9.2 9.3 9.5 9.7 10
Ti-6Al-4V Titanium alloy resistivity
θ/℃ 20 100 200 300 400 500 550 600 700 800
ρ/μΩ·m 1.70 1.76 1.82 1.86 1.89 1.91 1.92 1.92 1.92 1.91

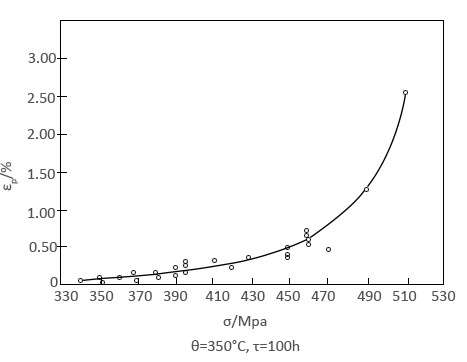

Creep stress - plastic strain curve of annealing Ti Grade 5 Titanium alloy castings
