Superconducting Niobium(RRR>300)

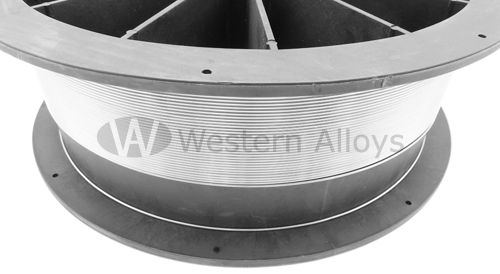

superconducting niobium wire

Superconducting Niobium(RRR>300) production process

For high purity Niobium production, Nb2O5 was usually reduced to crude Niobium first. Then the crude Niobium was purified by electron beam smelting, followed by rolling, pickling, annealing and polishing process. After these processes above, high purity Niobium materials (RRR>300) can be obtained.

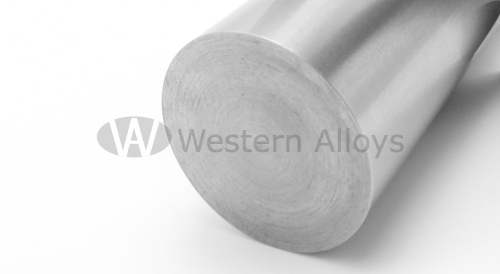

superconduction niobium rod

Our Superconducting Niobium products

Purity of Superconducting Niobium: 3N, 3N5, 4N, 4N5.
Niobium Sheet RRR>300 and Niobium Rod’s RRR can reach to 330

High purity Niobium Rod (RRR>300) dimension
Diameter (mm) Length (mm)
10 1000
20 1000
High purity Niobium Sheet (RRR>300) dimension
Thickness (mm) Width (mm) Length (mm)
1 500 1000
1.5 600 1000

Application of Superconducting Niobium(RRR>300)

RRR>300 high purity Niobium material is suitable for RF superconducting cavity. It can be used to make superconducting microwave resonance accelerators and cavities. The accelerator wall made of Superconducting Niobium as material has the feature of Low high-frequency resistance, which can prevent high frequency loss in transmission.
In addition to superconducting properties, good mechanical properties must also be considered for accelerator cavity materials used. High purity Niobium can be made into semi-shells through deep stamping process, then multi-segment of these semi-shells were weld into an accelerator cavity.
