Niobium Rod / Bar

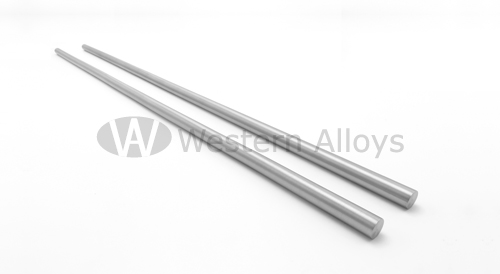

niobium rod

Application of Niobium Rod / Bar

Niobium Rod / Bar is widely used in chemical, electronic, aerospace and other fields for its properties of high melting point, corrosion resistance and good cold working performance.
Adding Zirconium to Niobium can obviously improve the oxidation resistance and strength of the materials.

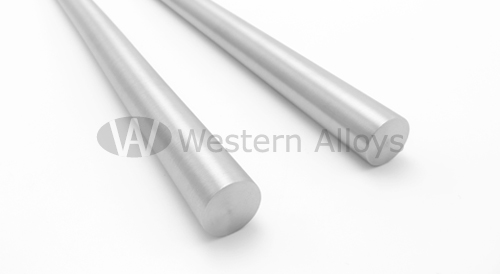

niobium bar

Niobium and Niobium alloy rod / bar are used as structural material for aero-engines and rocket nozzles, internal components of reactors and coating materials, and various corrosion resistant parts under the conditions of nitric acid, hydrochloric acid or sulfuric acid corrosion.

  • Request A Quote

    • Specification of Niobium Rod / Bar

    Diameter or side
    length (mm)    		 Tolerance of diameter or side length (mm) Length (mm) Specified length allowed divation (mm)
    Forging bar Extrusion rod Rolling bar Milling bar
    3.0-4.5 ± 0.05 - ± 0.05 - 200-1500 +5
    > 4.5-6.5 ± 0.10 - ± 0.10 - 200-1500 +5
    > 6.5-10.0 ± 0.15 - ± 0.15 - 200-1500 +5
    > 10.0-16.0 ± 0.20 - ± 0.20 - 200-2000 +20
    > 16.0-18.0 ± 1.0 - - ± 0.30 200-2000 +20
    > 18.0-25.0 ± 1.50 ± 1.0 - ± 0.40 200-2000 +20
    > 25.0-40.0 ± 2.0 ± 1.5 - ± 0.50 200-2000 +20
    > 40.0-50.0 ± 2.50 ± 2.0 - ± 0.60 200-2000 +20
    > 50.0-65.0 ± 3.00 ± 2.0 - ± 0.80 200-2000 +20
    > 65.0-150 ± 4.00 ± 3.0 - ± 1.00 200-1000 +20

    Properties of Niobium Rod / Bar

    ASTM B392 Main composition Other impurities Max%
    C O N H Ta Fe W Mo Si Ni Hf Zr
    Nb Bar 0.01 0.03 0.01 0.0015 0.1 0.005 0.03 0.1 0.005 0.005 0.02 0.02
    Nb-1Zr Bar 0.01 0.025 0.01 0.0015 0.2 0.01 0.05 0.1 0.005 0.005 0.02 0.8-1.2
    Mechanical properties of Niobium Rod / Bar
    ASTM B392 Diameter (mm) Tensile strength Rm (N/mm2) Elongation after fracture A%
    Nb Rod 0.5-3.0 ≥125 ≥20
    Nb-1Zr Rod ≥195 ≥15

    Our Niobium Rod / Bar products

    Western Alloys produces pure Niobium Rod / Bar, C103 Rod, Niobium-Titanium Rod, Niobium-Zirconium Rod, and other Niobium alloy rod.
    All Niobium Rod / Bar products follow ASTM standards, such as ASTM B392, ASTM B655.
