Niobium Sheet / Plate

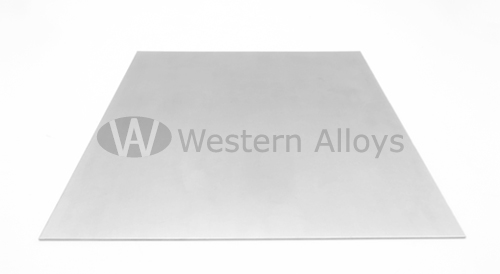

niobium sheet

Application of Niobium Sheet / Plate

Niobium Sheet / Plate and Niobium alloy sheet / plate are widely used in chemical, electronic and aerospace fields for their features of high melting point, corrosion resistance and high cold processing performance.

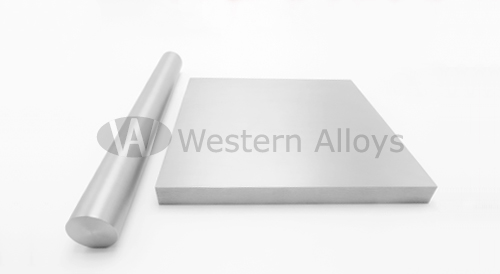

niobium plate

Our Niobium Sheet / Plate products

Western Alloys produces pure Niobium Sheet / Plate, Niobium-Hafnium Sheet / Plate (C-103 Sheet / Plate), Niobium-Titanium alloy sheet / plate, Niobium-Zirconium alloy sheet / plate and other Niobium alloy sheet / plate products. All our products follow ASTM standards such as ASTM B393 and ASTM B654.

  • Request A Quote

    • Specification of Niobium Sheet / Plate

    Dimension and tolerance of Niobium Sheet / Plate
    Thickness (mm) Tolerance (mm) Width (mm) Tolerance (mm) Length (mm) Tolerance (mm)
    Grade 1 Grade 2
    >1.0-1.5 ±0.080 ±0.10 50-200 ±2.0 50-700 ±2.0
    >1.5-2.0 ±0.120 ±0.14 50-200 ±2.0 50-700 ±2.0
    >2.0-3.0 ±0.160 ±0.18 50-200 ±2.0 50-600 ±2.0
    >3.0-4.0 ±0.180 ±0.20 50-200 ±1.0 50-500 ±1.0
    >4.0-6.0 ±0.200 ±0.24 50-200 ±1.0 50-300 ±1.0

    Properties of Niobium Sheet / Plate

    Strengthening mechanism and properties of Niobium alloy sheet / plate
    Alloys Shape Temperature/℃ Tensile strength/MPa Temperature/℃ Fracture strength/MPa
    Nb Sheet sheet 1093 70.3 1093 37.9
    Nb-752 Sheet sheet 1316 182.8 1093 112.5
    FS-85 Sheet sheet - - 1316 84.4
    SNb-291 sheet, rod 1093 225.0 1093 63.3
    C-103 sheet, rod 1093 189.8 - -
    C-129Y sheet 1316 161.7 1093 105.5
    B-66 sheet 1316 175.7 1093 105.5
    Nb-1Zr sheet 1093 161.7 1093 98.4
