Ti Gr.5 Gr.23 Bar

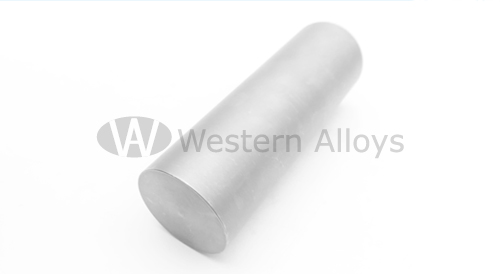

Ti Gr.5 bar

Ti Gr.5 Gr.23 Rod application

Ti-6Al-4V Rod can be used in deep-sea industry because of its features of high strength, high corrosion resistance, low elastic modulus and good anti-fatigue performance in seawater. It can be used as a ballast shell and is also an ideal material for offshore oil field application.

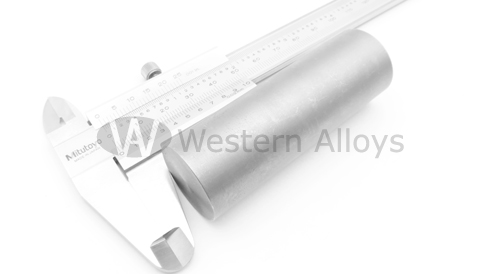

Ti Gr.23 bar
We can produce Ti Gr.5 Ti Gr.23 radial forged bars which have better structural properties than bars made by rolling process.

Popular Specifications of Ti Gr.5 Gr.23 Rod

Square bar:
Round bar:
Diameter 50 X L 1000mm
Diameter 16 X L 2000mm
Diameter 6 X L 3000mm
Diameter 2.5 X L 2000mm
Diameter 14 X L 3000mm
Diameter 20 X L 1500mm

Chemical composition of Ti Gr.5 Gr.23 Bar

Chemical composition of Ti Gr.5 and Ti Gr.23 Rod
Grade Chemical composition(mass fraction)/% Impurities(mass fraction)/%
Al V Ti Fe Si C N H O
  5.5-6.75 3.5-4.5 Balance ≤0.40 - ≤0.08 ≤0.05 ≤0.015 ≤0.20
Ti-6Al-4V ELI 5.5-6.5 3.5-4.5 Balance ≤0.25 - ≤0.08 ≤0.03 ≤0.0125 ≤0.13
